CTS Turbo FRONT Subframe Bushing Insert Kit: MK5/MK6/8P Audi A3 - IMPORTACION RAPIDA
PRE ORDEN (IMPORTACION 20-25 DIAS)

Descripción

PRODUCTO DISPONIBLE PARA IMPORTACION RAPIDA (20-25 días)

Marca: CTS Turbo  |  SKU: CTS-HW-036

CTS Turbo is proud to announce our new billet subframe bushing insert kit (applications listed below).  This kit is designed to eliminate the clunk that is commonly found on MK5’s and MK6’s due to the stretching of OEM bolts stretching and failing.  Our kit will repair the OEM TSB for the clunk correctly by reducing the large factory tolerances at the subframe mounting points.
Features:
  • Interlocking subframe shims center the front subframe to the body
  • Machined in house from T6061 Billet aluminum

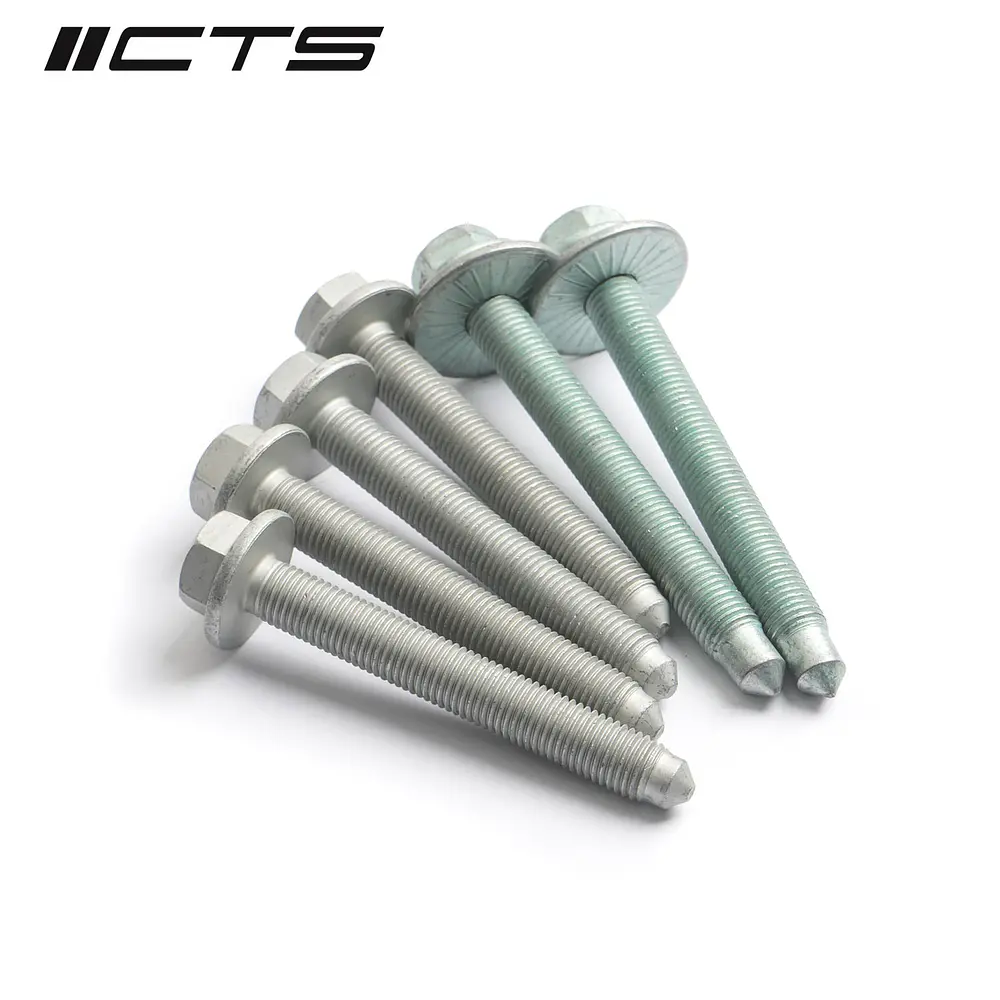

  • OE replacement stretch bolts
  • Eliminates subframe clunks and shifting

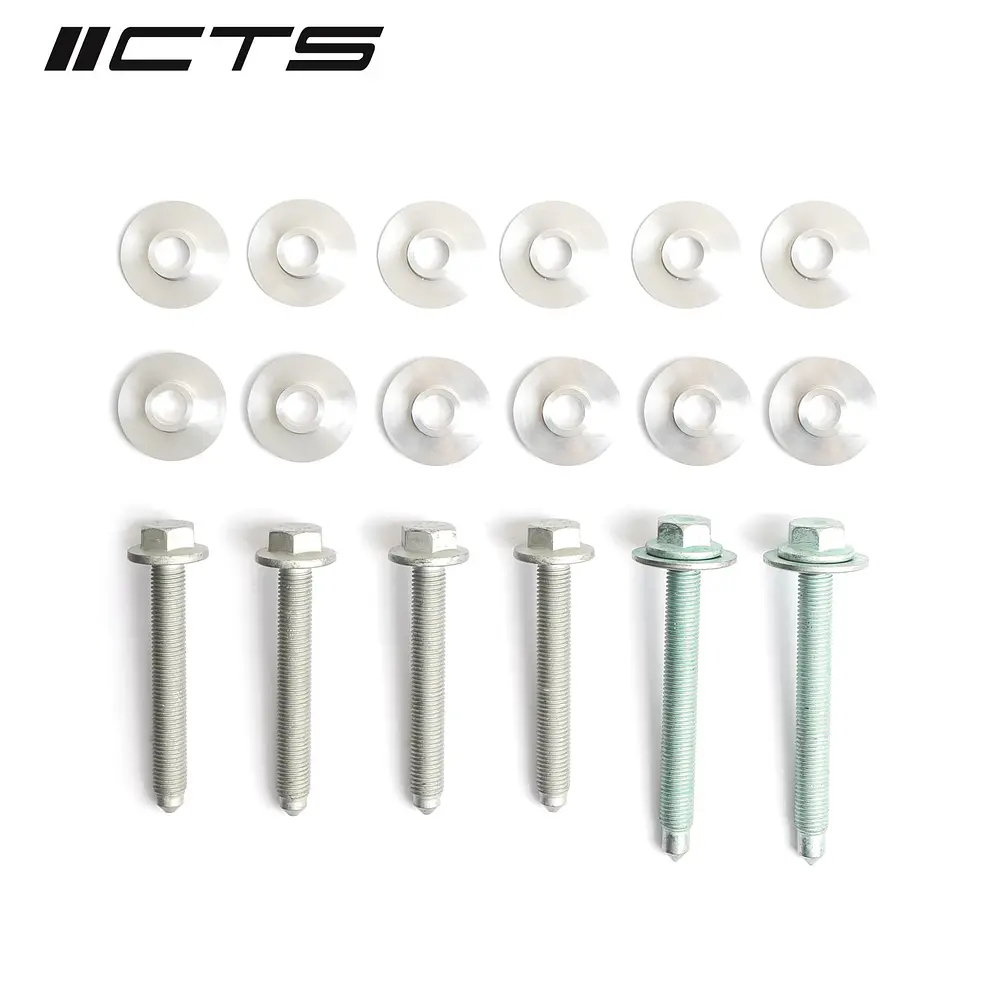

Kit Components:
  • 6 x Upper Insert
  • 6 x Lower Insert
  • 4 x Short OE Bolts
  • 2 x  Long OE Bolts

Torque specs:

  • 18mm bolts = 70Nm+180deg (do not re-use)
  • 16mm bolts = 50Nm + 90deg (can be re-used once)
  • 13mm bolts = 20Nm + 90deg (can be re-used once)

Fitment:

  • MK5 GTI/GLI/R32/Jetta/Rabbit
  • MK6 GTI/Golf R/Golf – Aluminum Subframe only, will not fit Jettas with steel subframe
  • 8P Audi A3/S3
  • B6 Passat/Passat CC

Note: wheel alignment required after installation.



Compatibilidad de vehículos

MarcaModeloAño
AUDIA32006 - 2013
VWCC2009 - 2017
VWGOLF2006 - 2009
VWGOLF2010 - 2014
VWGOLF R2012 - 2013
VWGOLF R322008
VWGTI2006 - 2009
VWGTI2010 - 2014
VWJETTA2005 - 2010
VWJETTA2011 - 2016
VWJETTA GLI2006 - 2010
VWJETTA GLI2011 - 2016
VWPASSAT2006 - 2010
